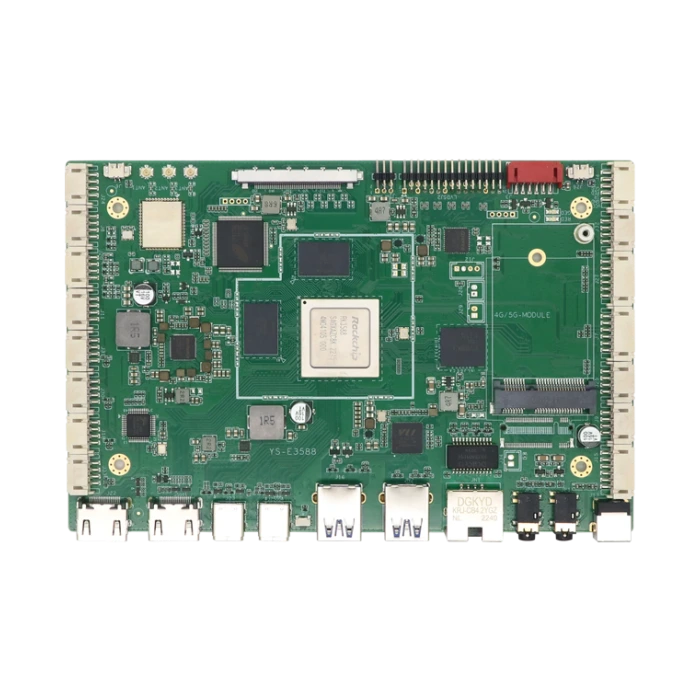

YS-E3588 4k android lvds control board for digital signage
Configuration：
CPU：Quad-core 64-bit Cortex-A55；Up to 2.4GHz
GPU：Mali-G610 MP4
NPU：Supports 1T computing power
Multimedia：Support 4K 60fps H.265/H.264/VP9 video decoding.；Support 1080P 100fps H.265/H.264 video encoding；Support 8M ISP, support HDR
Display：Support LVDS, MIPI, EDP display output

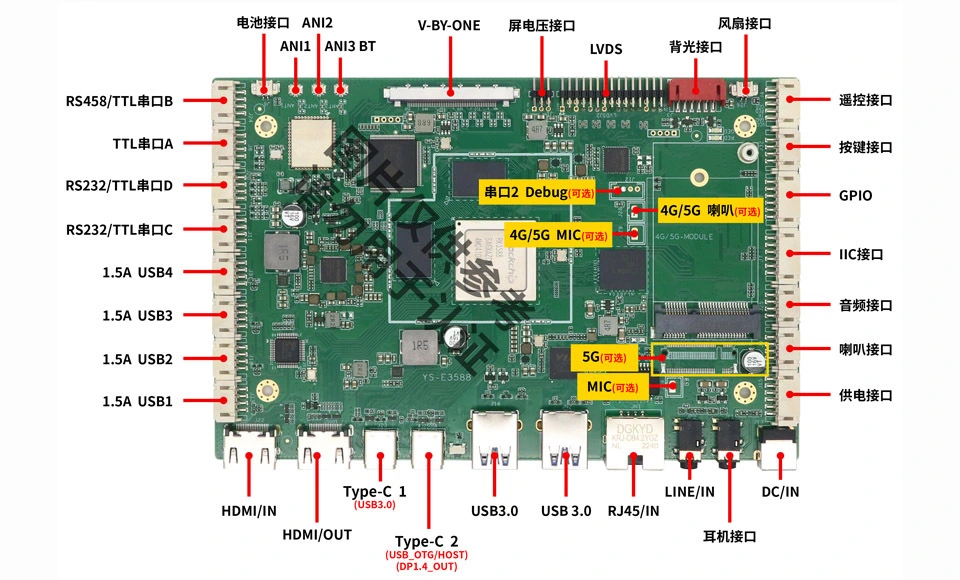

Peripheral Interface：Support 1000M/100M Adaptive Ethernet；Support WIFI-2.4G, BT-4.1 (optional WIFI-5.8G, BT-5.2)；4G module interface；7 USB2.0 host, 1 USB3.0 host, 1 USB3.0_OTG；4 TTL serial ports (1 optional TTL/RS232/RS485, 3 optional TTL/RS232), 1 of which is a debug serial port；2 dual eight LVDS interfaces or 2 EDP interfaces or 1 LVDS + 1 EDP interface, up to 1920X1080 output support；2-way screen backlight + brightness adjustment interface；Support speaker interface, the highest support for a 8Ω 5W dual-channel speaker output；1 local MIC interface, 1 4G-MIC interface, 1 4G speaker；
Product Display

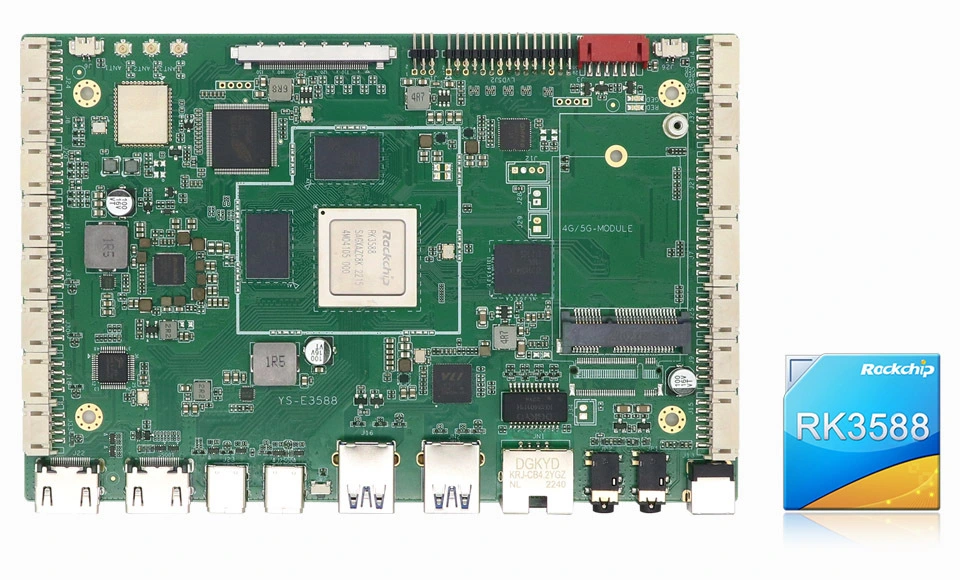

Product Details

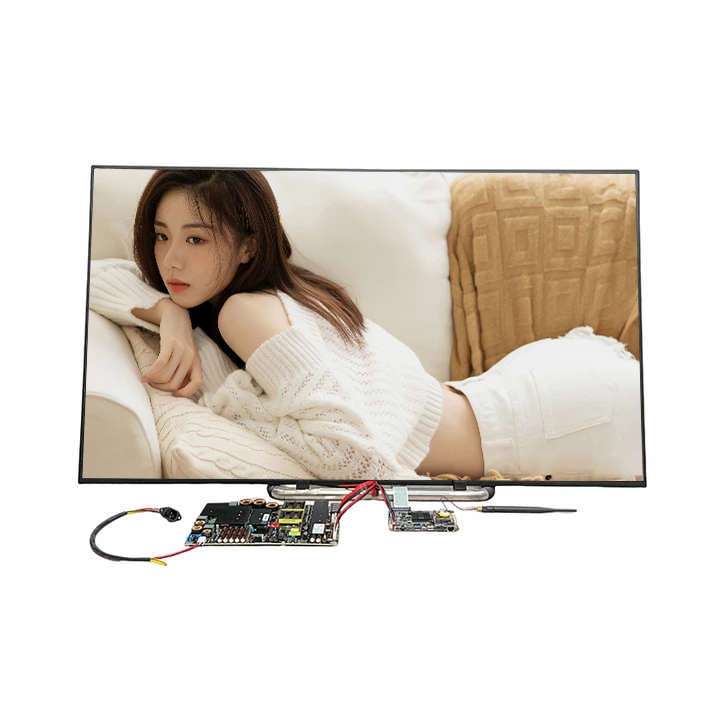

Clientop android controller board Widely used in a variety of intelligent devices, such as electronic signage, indoor and outdoor advertising, face recognition terminals, industrial controllers, etc.
Professional packaging to ensure the safety of transportation, to ensure that customers receive the perfect product!
